Key Specs of the “4848” 48 V / 48 Ah Lithium-ion Battery Pack
| Category | Detail |
|---|---|
| Nominal Voltage / Capacity | 48 V, 48 Ah (≈ 2.3 kWh usable energy) |
| Cell Chemistry | Li-ion with mixed LMO + LMFP cathode system (high thermal stability) |
| Built-in BMS | 7–14 series-cell smart BMS, 30 A continuous current protection |
| Cycle Life | ≥ 3 000 full cycles to ≥ 80 % capacity |

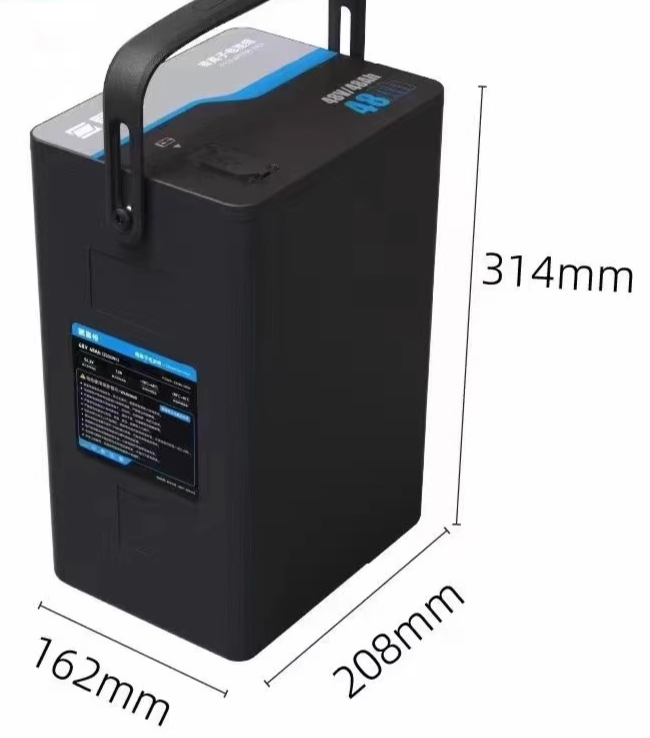

| Enclosure Size | 208 × 161.5 × 314 mm (L × W × H) |
| Weight | ≈ 16.3 kg |
| Ingress Protection | IPX7 (full-pack waterproof) |
| Safety & Transport Certs | CE, RoHS, UN38.3 compliant |
| Warranty | 12 months manufacturer warranty |
| Typical Uses | E-bikes, e-scooters, golf carts, small electric boats, mobility & solar storage systems |
Why it matters
-
Energy density bump: 48 V × 48 Ah delivers ~2.3 kWh—roughly double the range of common 48 V / 24 Ah packs.
-
Long service life: >3 000 cycles means ~5–7 years of daily charge-and-ride with minimal capacity loss.
-
Robust protection: On-board BMS handles cell balancing, over-charge/-discharge, short-circuit and temperature cut-off, letting you drop the pack straight into most 48 V systems.
-
Outdoor-proof build: IPX7 sealing plus CE/RoHS/UN38.3 certification covers rainy commutes and hassle-free shipping.
-
Compact “4848” footprint: The 208 × 162 × 314 mm housing matches many China National Standard (GB) battery bays, making it a true plug-and-play upgrade.
